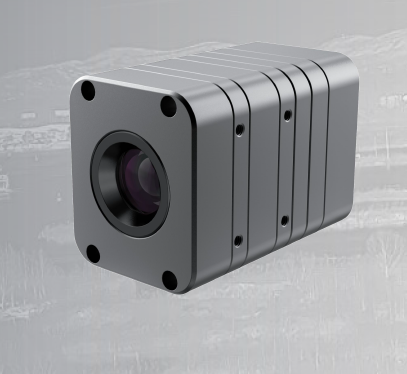

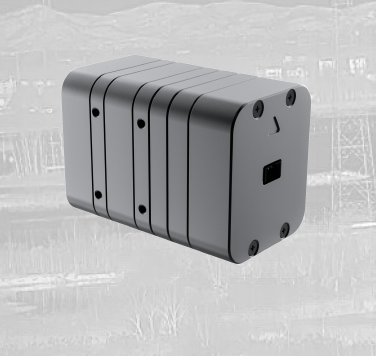

Integrated camera F91-6

F91-6 Integrated Camera

Product Features

• Small size, lightweight, low power consumption (SWaP)

• Ceramic-packaged detector, NETD ≤30mK, ultra-high sensitivity

• Equipped with NUC/3DNR/DNS/DDE and other advanced image algorithms for clearer imaging

• Standard CVBS video output interface with simple 3-pin design

• Stable operation under complex environmental conditions

Product Dimensions

Product Specifications

Detector Performance

• Package Type: Ceramic-packaged detector

• Resolution: 640×512

• Pixel Pitch: 12μm

• Spectral Range: 8μm–14μm

• Typical NETD: ≤30mK @25°C

Image Processing

• Frame Rate: 25Hz

• Startup Time: ≤15s

• Image Display: 13 modes (White Hot / Black Hot / Iron Red, etc.)

• Image Algorithms: NUC / 3DNR / DNS / DDE

Electrical Characteristics

• Video Interface: CVBS

• Communication: USB / UART (built-in)

• Operating Voltage Range: DC3.9–5.5V (typical DC5V)

• Typical Power Consumption: ≤1.2W

Physical Characteristics

• Dimensions (mm): 27 × 32 × 45.1 (including 9.1mm lens)

• Weight (g): ≤63 (including 9.1mm lens)

Environmental Adaptability

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -45°C to +65°C
